NAVIGA-AD Internet Orders Actual GL Split

Type: Campaigns

Returns GL Revenue allocation values by Sub Orders

NAVIGA-AD Internet Orders Actual GL Split Downloads

Returns GL Revenue allocation values by Sub Orders

Bundle (TGZ): NAVIGA-AD Internet Orders Actual GL Split
Definition JSON: naviga-ad-internet-orders-actual-gl-split.json

Summary

This report reads from new fields (2026) in AD Internet Orders mapping.

• GL Rev Amt - The revenue amounts for each GL Code in the GL Codes field.
• GL Rev Codes - The GL Codes to be applied to the revenue Amounts
• GL Rev Source - The rules that the GL Split using
• GL Comm Amt - The commission amounts for each GL Code in the GL Comm Codes field.
• GL Comm Codes - The GL Codes to be applied to the commission Amounts
• GL Comm Source - The rules that the GL Comm Split using

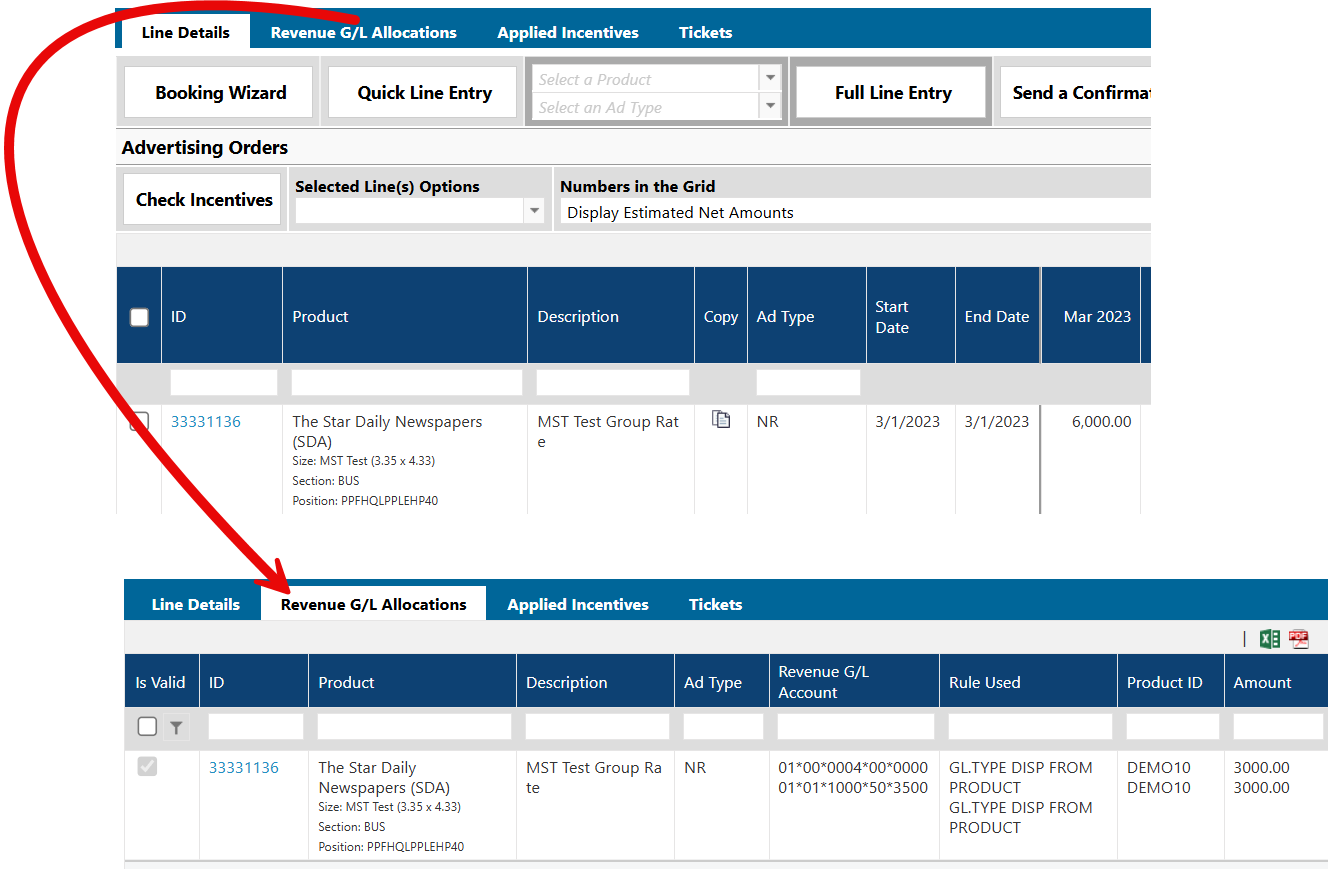

Below is an image of where you will see the Revenue G/L Allocations in a Campaign.

The Informer fields mentioned above will have the values from the "Revenue G/L Allocations" tab, however, this tab aggregates all sub orders that are on a line.

For example if a line ran for 3 months, hence 3 sub orders, each of $100. The Allocation would show 300 split across the GLs.

This report will take the aggregated GL Allocation and apply it to each sub order.

Let's walk through a scenario.

Scenario Details

Context:

• Campaign ID: 22572
• Line ID: 70176
• Sub Orders: Multiple sub-orders each with an actAmount of $200, combining to reach a total campaign amount of $5,200 (26 sub-orders total).

Revenue Distribution:

• GL Codes: ['001', '002'] (made these up to keep it simple)
• GL Amounts: [2600, 2600] (Total: $5,200)

Commission Distribution:

• GL Comm Codes: ['400', '500'] (made these up to keep it simple)
• GL Comm Amounts: [-1300, -1300] (Total: -$2,600)

---

Mathematical Breakdown for a Single Sub-Order

For a single sub-order where actAmount = 200:

1. Revenue Spread

1. Total GL Amount: 2600 + 2600 = 5200
2. Allocation: Each GL code represents 2600 / 5200 = 50% of the total.
3. Result: The $200 is split 50/50.
   • GL 001: $100
   • GL 002: $100

2. Commission Spread

1. Total Commission Amount: -1300 + -1300 = -2600
2. Commission Percentage: -2600 / 5200 = -50%
3. Commission for this actAmount: 200 * -50% = -100
4. Allocation: Each commission GL code represents -1300 / -2600 = 50% of the commission pool.
5. Result: The -$100 commission is split 50/50.
   • GL 400: -$50
   • GL 500: -$50

---

Informer Use

In Informer, we will call these functions (see below implementation) and will be return an array of sub order GL Amounts/GL Codes and GL Comm Amount/GL Comm Codes proportionally split from the aggregation GL Amount fields.

NOTE: The GL Amounts for each sub order will be GROSS, i.e. inclusive of the GL Commission amount

These arrays will need to then be normalized.

JavaScript Implementation

Below are the two functions required to process this logic. Both functions include "penny rounding protection" on the final array element to ensure no fractional cents are lost or gained during complex splits. All this means is that as we loop through and split the revenue across the GLs we are subtracting each interaction value from the total amount. Then on the last item in the array, instead of calculating (actAmt*proportion), we just return what is left from the total amount that we started with.

/**
 * Spreads a single actAmount proportionally across Revenue GL codes.
 */
function spreadProportionally(actAmt, glRevAmounts, glCodes) {
  const totalGlAmount = glRevAmounts.reduce((sum, amt) => sum + amt, 0);
  if (totalGlAmount === 0) throw new Error("Total GL amount cannot be zero.");

  let remainingActAmt = actAmt;
  const glSpreadAmts = [];

  glRevAmounts.forEach((glAmt, index) => {
    if (index === glRevAmounts.length - 1) {
      glSpreadAmts.push(Number(remainingActAmt.toFixed(2)));
    } else {
      const proportion = glAmt / totalGlAmount;
      const allocatedAmt = Number((actAmt * proportion).toFixed(2));
      glSpreadAmts.push(allocatedAmt);
      remainingActAmt -= allocatedAmt;
    }
  });

  return { glCodes, glSpreadAmts };
}

/**
 * Calculates the commission amount from an actAmount and spreads it across Commission GL codes.
 */
function spreadCommission(actAmt, glAmounts, glCommAmounts, glCommCodes) {
  const totalGlAmount = glAmounts.reduce((sum, amt) => sum + amt, 0);
  const totalGlCommAmount = glCommAmounts.reduce((sum, amt) => sum + amt, 0);

  if (totalGlAmount === 0) throw new Error("Total GL amount cannot be zero.");

  const commPercentage = totalGlCommAmount / totalGlAmount;
  const actCommAmt = Number((actAmt * commPercentage).toFixed(2));

  const glCommSpreadAmts = [];

  if (totalGlCommAmount === 0 || actCommAmt === 0) {
    return { glCommCodes, glCommSpreadAmts: glCommCodes.map(() => 0) };
  }

  let remainingCommAmt = actCommAmt;

  glCommAmounts.forEach((commAmt, index) => {
    if (index === glCommAmounts.length - 1) {
      glCommSpreadAmts.push(Number(remainingCommAmt.toFixed(2)));
    } else {
      const proportion = commAmt / totalGlCommAmount;
      const allocatedAmt = Number((actCommAmt * proportion).toFixed(2));
      glCommSpreadAmts.push(allocatedAmt);
      remainingCommAmt -= allocatedAmt;
    }
  });

  return { glCommCodes, glCommSpreadAmts };
}

Description

GL Revenue based report that uses the GL Rev Amount, GL Rev Codes and other fields to show the actual GL breakouts based on your Naviga setup (https://dev.navigahub.com/EW/devdigital/ad/setup/digital_setup)

Fields

Label	Alias	Type	Hidden	Description
Campaign ID	campaignId	double		Campaign Identifier
Line ID	id	keyword_text		Line Identifier
Month Start Date	monthStartDate	date		Month start date is the starting date for the sub order on a line. Lines can have one or more sub orders. For print ads, this is synonymous with Issue Date.
Product ID	webSiteId	keyword_text		Product Id
Product	web_site_id_assoc_webPubName	keyword_text		Product Name/description
Proportion Gl Amounts	proportionGLAmounts	double		Sub Order GL Gross Amount.
Proportion Gl Codes	proportionGLCodes	keyword_text		Sub order GL Code
Proportion Gl Comm Codes	proportionGLCommCodes	keyword_text		Sub Order Agency Commission GL Codes
Proportion Gl Comm Amounts	proportionGLCommAmounts	double		Sub Order Agency Commission GL Amounts
Proportional Spread	proportionalSpread	object		(hidden) Used in calculating final GL Rev Amt values
Proportion Gl Source	proportionGLSource	keyword_text		GL Rev Source rule
Proportion Gl Comm Source	proportionGLCommSource	keyword_text		GL Comm Source rule
Gross Line Local Revenue	grossLineLocalRevenue	double		(hidden) calculated Gross line local revenue used in calculating the proper split of the GL Rev Amt and the GL Comm Amt for each sub order
Proportional Comm Spread	proportionalCommSpread	object		(hidden) Used in calculating final GL Comm Amt values
GL Line ID	glLineId	keyword_text		Added for testing/debugging, same as Line ID, but different granularity
GL Comm Amt	glCommAmt	double		(hidden) This is a MV/SV field that contains the breakouts of the total agency commission Line amount across the defined GLs.
GL Comm Codes	glCommCodes	keyword_text		(hidden) This is a MV/SV field that aligns with the GL Comm Amt to show the GL Code associated with the agency commission amount
GL Rev Codes	glRevCodes	keyword_text		(hidden) This is a MV/SV field that aligns with the GL RevAmt to show the GL Code associated with the gross amount
GL Rev Amt	glRevAmt	double		(hidden) This is a MV/SV field that contains the breakouts of the total gross Line amount across the defined GLs.
Month Actual Amt	monthActualAmt	double		(hidden) used in calculating the proper split of the GL Rev Amt and the GL Comm Amt for each sub order
Month Est Amt	monthEstAmt	double		(hidden) used in calculating the proper split of the GL Rev Amt and the GL Comm Amt for each sub order
AD Internet Campaigns Internet Campaign Type	a_d_internet_campaigns_assoc_campaignType	keyword_text		Type of campaign M = Performance F = Flexible
GL Comm Source	glCommSource	keyword_text		(hidden) The rules that the GL Comm Split is using
GL Rev Source	glRevSource	keyword_text		(hidden) The rules that the GL Split is using
